POE-173S - Single-Port 10/100/1000Mbps 802.3bt PoE++ Splitter
| Hardware Specifications | |
|---|---|
| Interface | Ethernet 1 x 10/100/1000BASE-T RJ45, Ethernet data output port PoE in 1 x 10/100/1000BASE-T RJ45, PoE power input port Power socket 1 x DC plug-in |

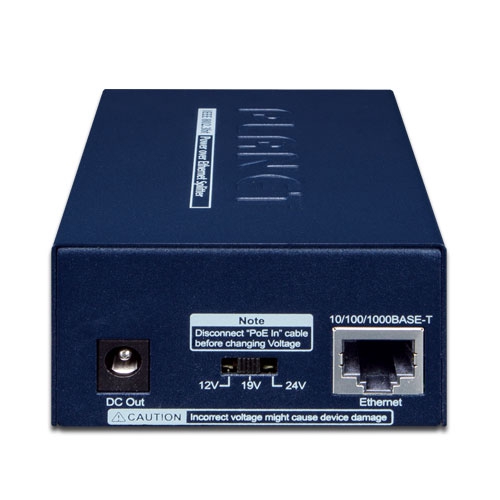

| DIP Switch | 12V/19V/24V DC output |
| DC Socket | DC receptacle 2.5mm |

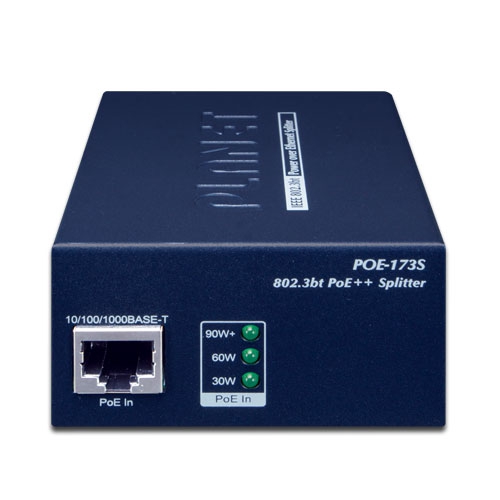

| LED Indicators | PoE in: 30W (Green) 60W (Green) 90W+ (Green) |
| Data Rate | 10/100/1000Mbps |
| Dimensions (W x D x H) | 94 x 70.3 x 39.2 mm |
| Weight | 265g |
| Installation | Desktop/wall mountable/DIN-rail (optional) |
| ESD Protection | 4KV |
| EFT Protection | 4KV |
| Enclosure | Metal case |
| Power Requirements | 48~56V DC PoE |
| Unit Output Current (at 56VDC Input) | With 803.bt type 3 PoE++ input:
With 803.bt type 4 PoE++ input:
|
| Power Consumption | System on: 6 watts Ethernet full loading without DC output: 6.5 watts Ethernet full loading with maximum 12V DC, 5A output: 70 watts |
| Network Cable | 803.bt PoE (60W+) 4-pair UTP Cat. 5, 5e, 6 up to 100m (328ft) 802.3at PoE (30W) 2-pair UTP Cat. 5, 5e, 6 up to 100m (328ft) |
| Power over Ethernet | |
| PoE Standard | 802.3bt Type 3/4 Power over Ethernet 4-pair 802.3at PoE+ Compliant with voltage within 48-56V DC |
| Power Output | DC 12V/19V/24V by DIP switch control |
| PoE Power Supply Type | End-span + Mid-span End-span Mid-span |
| Power Pin Assignment | 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) or 1/2 (-), 3/6 (+); 4/5 (+), 7/8 (-) |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt 4-pair Power over Ethernet Type 4 |
| Regulatory Compliance | FCC, CE |
| Environment Specifications | |
| Operating Temperature | 0~ 50 degrees C |
| Storage Temperature | -10~ 70 degrees C |
| Humidity | 5 ~ 95% (non-condensing) |
| Standard Accessories | |
| Package Contents | POE-173S x 1 User’s manual x 1 15cm UTP straight network cable x 1 External female plug cables x 2:
|
